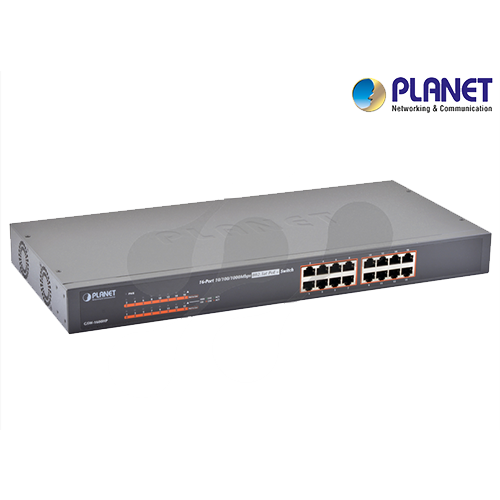

Donanım Özellikleri Network Port 16 10/100/1000Base-T auto-MDI/MDI-X RJ-45 ports PoE Inject Port 16-Port with 802.3af / 802.3at PoE injector function LED Display System Power (Green) PoE Ethernet Interfaces PoE In-Use (Orange) 10/100/1000Base-T Ports 1000 (LNK/ACT, Green), 10/100 (LNK/ACT, Orange) Switch Architecture Store and Forward switch architecture MAC Adres Tablosu 8K MAC address table with auto learning function Switch Fabric 32Gbps Switch Throughput 23.8Mpps@64Bytes Jumbo Packet Size 9K Bytes Akış Kontrolü Back pressure for half-duplex. IEEE 802.3x pause frame for full-duplex Güç Gereksinimi AC 100~240V, 50/60Hz, 3.5A max. Güç Tüketimi Max. 260 watts / 885 BTU Ölçüler (W x D x H) 445 x 207 x 45 mm (1U height) Ağırlık 2.54kg Power over Ethernet PoE Standard IEEE 802.3af Power over Ethernet / PSE IEEE 802.3at Enhancement Power over Ethernet / PSE PoE Power Output Per Port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af) Per Port 52V DC, 590mA. max. 30 watts (IEEE 802.3at) PoE Power Budget 220 watts Number of PD, 7Watts 16 Number of PD, 15.4Watts 14 Number of PD, 30.8Watts 7 Çevresel Özellikler Çalışma Sıcaklığı 0 ~ 50 degrees C Saklama Sıcaklığı -40 ~ 70 degrees C Çalışma Nem Oranı 5 ~ 95%, relative humidity, non-condensing Saklama Nem Oranı 5 ~ 95%, relative humidity, non-condensing Standart Uygunluğu Standard Compliance IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3af IEEE 802.3at IEEE 802.3az Ethernet Fast Ethernet Flow Control Power over Ethernet Enhanced Power over Ethernet Pre-Energy-Efficient Ethernet Yönetmelik Uygunluğu FCC Class A, CE
